Superluminescence LEDs DL-CS Series(InP-Based SLED)
Superluminescent Light Emitting Diode & Modules in 14 pin Butterfly or 14 pin DIL
l Wavelength from 1200nm to 1700nm
l Highest energy/ output efficiency in the market
l Comprehensive range to suit your needs
l Superior power and spectral coverage
l Telcordia and ISO9001:2008 certification
l RoHS Compliance
l High TE/TM ratio (>20dB possible)
l Direct Modulation up to 622 MHz available on request
l Low Coherence Noise
l Low Spectra Ripple (0.1~0.2 dB)
Applications
|
§ Communications |
- |
affordable gigabit bandwidth fiber-link to homes and business (FTTX), test & measurement for telecom networks |
|
§ Medical applications
|
- |
OCT (biopsies-less medical cell imaging, diagnostic imaging), point of use/ handhelds/ non-invasive diagnosis (blood analysis) |
|
§ Energy, oil and gas |
- |
sensing in gas & oil production, telemetry in electricity distribution |
|
§ Industrial controls |
- |
in-line production process monitoring, 3D metrology and surface metrology, semiconductor fabrication (solar cells), chemical and gas sensing – safety, emission control, security |
|
§ Environmental sensing |
- |
physical (temp, pressure, strain, vibrations), structural and civil engineering, smart structures, intelligent distributed sensing |
|
§ Defense & security |
- |
perimeter defense, navigation and guidance - inertia sensing (gyroscope), infrared illumination for surveillance and speckle-free military imaging |

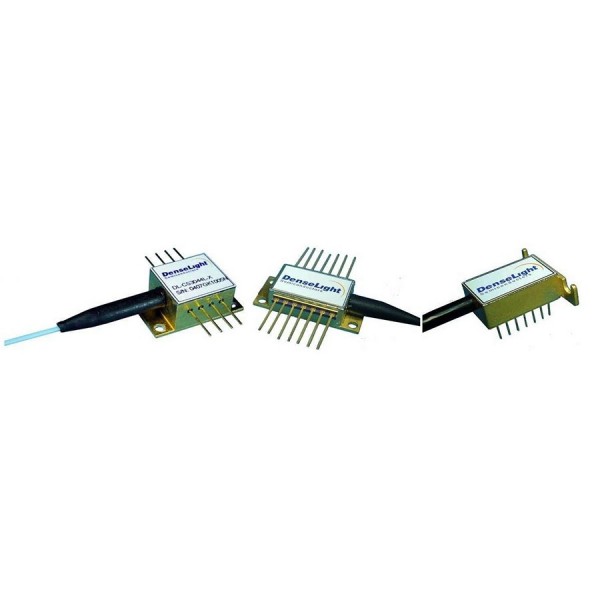

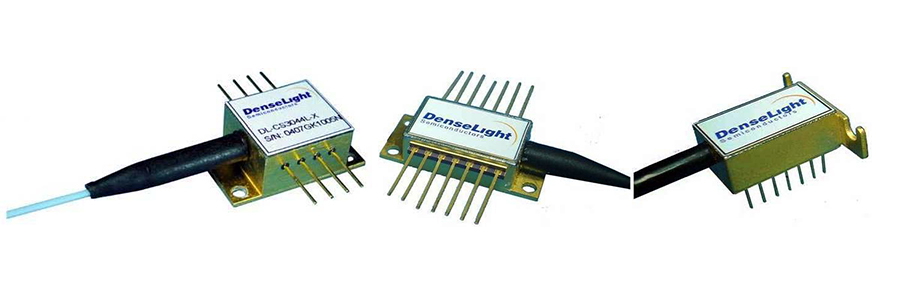

Packaging Options
DenseLight offers different packaging options to suit your various application needs
- 14 pin DIL and Butterfly package
- 8 pin mini Butterfly Options
- SMF and PMF fiber pigtail options
- Optional monitoring photodiode
- Optional optical connectors

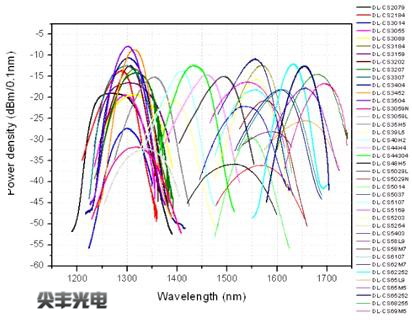

Product Table
|
Center Wavelength (nm) |
Product Code |
Min Power (mW) |
Typ BW FWHM (nm) |
Typ Spectral Ripple (dB) |
Package Options |
Typ Iop (mA) |
Download |
|
1275+/-15 |
DL-CS2079A |
7 |
75 |
0.15 |
BTF |
400 |
|
|
1280+/-10 |
DL-CS2184A/B |
18 |
40 |
0.15 |
BTF/DIL |
350 |
/ |
|
1310+/-20 |
DL-CS3034L |
0.3 |
43 |
0.1 |
DIL |
100 |
|
|
1310+/-20 |
DL-CS3059N |
0.4 |
70 |
0.1 |
DIL |
150 |
|
|
1310+/-20 |
DL-CS3014A |
1 |
43 |
0.1 |
DIL |
150 |
|
|
1310+/-20 |
DL-CS3024A/B |
2 |
45 |
0.1 |
BTF/DIL |
180 |
/ |
|
1310+/-20 |
DL-CS3055A/B |
5 |
50 |
0.15 |
BTF/DIL |
250 |
/ |
|
1310+/-20 |
DL-CS3089A |
8 |
75 |
0.2 |
BTF |
400 |
|
|
1290-1320 |
DL-CS3102A/B |
10 |
30 |
0.15 |
BTF/DIL |
250 |
/ |
|
1290-1320 |
DL-CS3152A |
15 |
30 |
0.15 |
BTF |
300 |
|
|
1310+/-20 |
DL-CS3159A |
15 |
83 |
0.25 |
BTF |
500 |
|
|
1310+/-20 |
DL-CS3184A/B |
18 |
42 |
0.15 |
BTF/DIL |
350 |
/ |
|
1290-1320 |
DL-CS3202A/B |
20 |
30 |
0.2 |
BTF/DIL |
350 |
/ |
|
1310+/-20 |
DL-CS3207A |
20 |
56 |
0.15 |
BTF |
500 |
|
|
1310+/-20 |
DL-CS3307A |
30 |
58 |
0.25 |
BTF |
700 |
|
|
1310+/-20 |
DL-CS3404A |
40 |
43 |
0.25 |
BTF |
700 |
|
|
1310+/-20 |
DL-CS3452A |
40 |
32 |
0.35 |
BTF |
700 |
* * |
|
1310+/-20 |
DL-CS3504A |
50 |
38 |
0.3 |
BTF |
700 |
|
|
1340+/-20 |
DL-CS3059L |
0.4 |
80 |
0.1 |
DIL |
180 |
|
|
1350+/-20 |
DL-CS35H5A |
13 |
48 |
0.2 |
BTF |
350 |
|
|
1390+/-20 |
DL-CS39L5B |
3 |
55 |
0.1 |
DIL |
200 |
|
|
1400+/-20 |
DL-CS40H2A/B |
15 |
35 |
0.2 |
BTF/DIL |
350 |
/ |
|
1430+/-15 |
DL-CS43H4A |
15 |
45 |
0.2 |
BTF |
350 |
|
|
1450+/-20 |
DL-CS44H4A |
15 |
45 |
0.2 |
BTF |
350 |
|
|
1480+/-20 |
DL-CS48H5A/B |
15 |
50 |
0.2 |
BTF/DIL |
350 |
/ |
|
1490-1520 |
DL-CS5029L |
0.2 |
100 |
0.1 |
DIL |
180 |
|
|
1550+/-20 |
DL-CS5029N |
0.2 |
95 |
0.1 |
DIL |
150 |
|
|
1550+/-20 |
DL-CS5014A |
1 |
43 |
0.15 |
DIL |
125 |
|
|
1550+/-20 |
DL-CS5037A/B |
3 |
60 |
0.15 |
BTF/DIL |
250 |
/ |
|
1550+/-20 |
DL-CS5077A/B |
5 |
60 |
0.2 |
BTF/DIL |
250 |
/ |
|
1550+/-20 |
DL-CS5107A/B |
8 |
60 |
0.2 |
BTF/DIL |
300 |
/ |
|
1550+/-20 |
DL-CS5169A |
16 |
80 |
0.3 |
BTF |
500 |
|
|
1550+/-20 |
DL-CS5103A/B |
10 |
40 |
0.15 |
BTF/DIL |
300 |
/ |
|
1550+/-20 |
DL-CS5153A |
15 |
40 |
0.2 |
BTF |
350 |
|
|
1550+/-20 |
DL-CS5203A |
20 |
40 |
0.25 |
BTF |
450 |
|
|
1550+/-20 |
DL-CS5254A |
25 |
40 |
0.25 |
BTF |
450 |
|
|
1550+/-20 |
DL-CS5403A |
35 |
40 |
0.35 |
BTF |
650 |
|
|
1580+/-20 |
DL-CS58M7A |
5 |
58 |
0.15 |
BTF |
200 |
|
|
1580+/-20 |
DL-CS58L9B |
1.5 |
95 |
0.1 |
DIL |
250 |
|
|
1600+/-20 |
DL-CS6055A/B |
5 |
55 |
0.15 |
BTF/DIL |
200 |
/ |
|
1600+/-20 |
DL-CS6107A/B |
8 |
60 |
0.15 |
BTF/DIL |
300 |
/ |
|
1615+/15 |
DL-CS62M7A/B |
8 |
60 |
0.15 |
BTF/DIL |
300 |
/ |
|
1650+/-20 |
DL-CS65L9A |
2 |
85 |
0.1 |
BTF |
300 |
|
|
1650+/-15 |
DL-CS65M5A |
10 |
50 |
0.2 |
BTF |
350 |
|
|
1690+/-10 |
DL-CS69M5A |
10 |
50 |
0.15 |
BTF |
400 |
