JFSLM36R spatial light modulator features 4K JF resolution, RGB colour three-channel phase modulation and a monochrome operating mode up to 180Hz.
Introduction

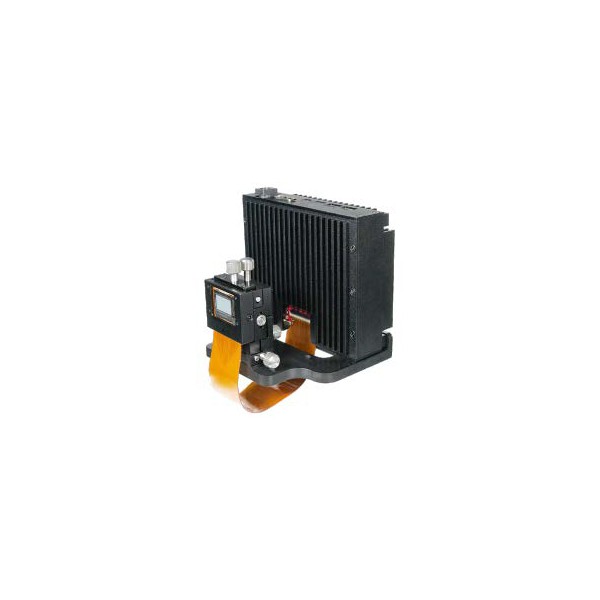

JFSLM36R spatial light modulator features 4K JF resolution, RGB colour three-channel phase modulation and a monochrome operating mode up to 180Hz. The LCoS screen can be rotated left and right and tilted up and down for flexibility of use and comes with an extra long 25cm FPC cable. Facilitating the operator to concentrate on the research. The JFSLM36R has a 3.6μm ultra-small pixel, and is currently a commercial phase-based spatial light modulator with the smallest pixel size in the world.
Product Image
Specifications
Specifications
Type |
Modulation |
Resolution |
Frame |
Pixel |
Bit Depth |
Fill |
Amplitude |
Phase Retardance |
Wavelength |
JFSLM36R |
Phase |
4096*2240 |
180Hz |
3.6μm |
8bit |
>90% |
/ |
>2.1π@670nm |
420~670nm |
JFSLM36R-TEC |
>2π@1550nm |
1550±100nm |
|||||||
JFSLM36RA |
Amplitude |
1000:1 |
/ |
420~670nm |
Features
JFSLM36R/JFSLM36RA High Speed Standard Version:
Adjustable LCoS optical module by the angle of left, right, pitched up and pitched downLong FPC cable, LCoS optical chip module of small size, Easy integration High space bandwidth, High imaging resolution
Long FPC cable, LCoS optical chip module of small size, Easy integration
High space bandwidth, High imaging resolution

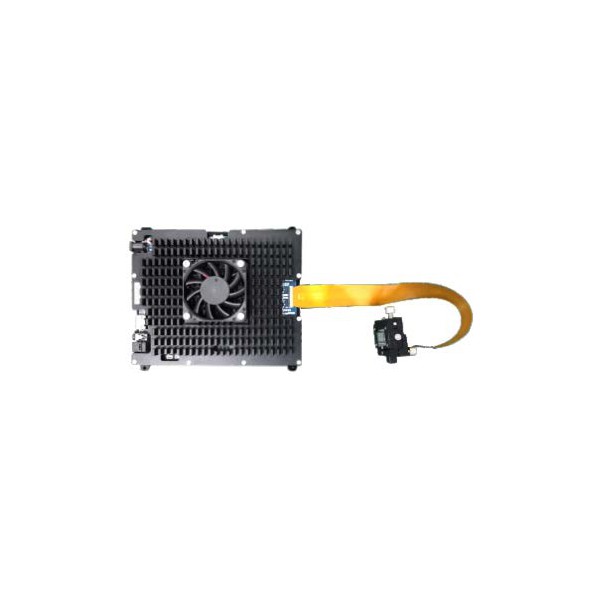

JFSLM36R-Lite High-speed Compact Version
Pluggable FPC cable
Separated structure, Small control board applicable for compact space
JFSLM36R-Kit High-speed Holographic Kit
Integrated system without the need for setting optical path
Easy to operate by simply powered-on
JFSLM36R-PCIe Multichannel Version
4 LCoS optical modules integrated in one driver board
Applicable for combination control of 8K4K, maximum allowable application forcombination control of 16k8k
Applicable for multi-SLM cascade optical computing applications, Mix-modulationof amplitude and phase
Separated structure
Advantage Application
• Optical field control
• Beam deflection
• Optical diFF multiplexing
• Free space optical communication
• Ultra-high resolution imaging
• Laser processing /3D printing
• Computational holography
• Holographic projection
• Holographic storage
