TeraSpike THz近场探针 无偏置太赫兹脉冲产生探针

Bias-free THz pulse generation probe

TeraSpike TD-1550-Y-BF

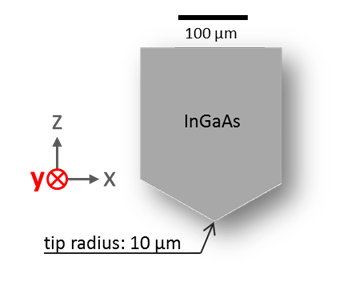

Microprobe cantilever design:

The TeraSpike TD-1550-Y-BF is a microprobe emitter based on patent pending design (DE 10 2013 020 216.7) for the bias-free surface-near excitation of Terahertz pulses on planar waveguides, metallic surfaces or meta-materials. The optically generated THz field is polarized in y-direction.

Application example:

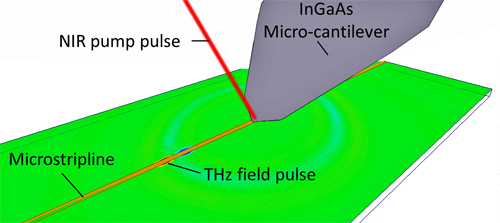

Configuration: THz pulse generation on a thin-film microstrip line using the bias-free TeraSpike emitter microprobe. For on-chip contact-free THz field detection a second TeraSpike probe from the TD-800-X or Z series can be applied.

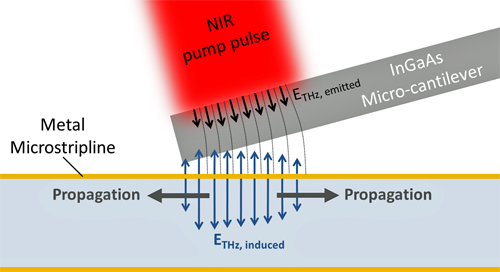

THz Emission scheme: THz pulse generation is based on optical excitation of the InGaAs micro-cantilever surface. Placing the excited tip close to a conductive structure or surface allows efficient capacitive coupling and pulse transmission.

Technical specifications:
