Ultrafast Terahertz detectors
Ultrafast Terahertz detectors
s/n: TSS#094
Ultrafast Terahertz detectors
Description

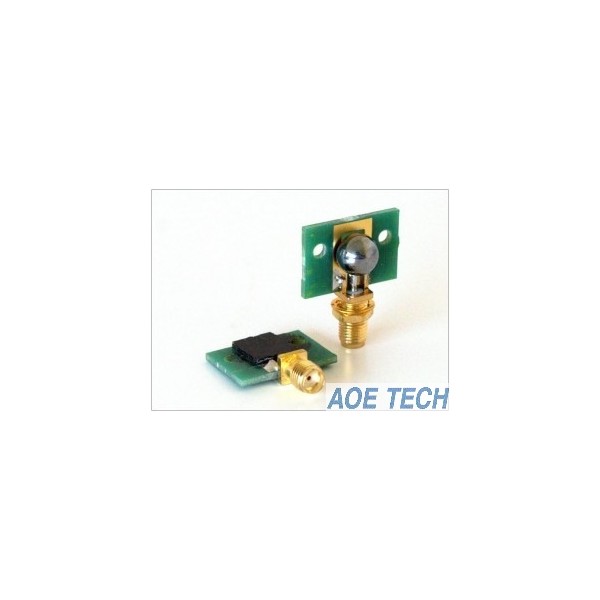

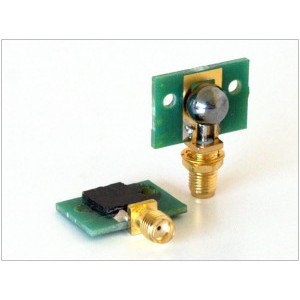

Passive detector of sub-THz radiation.
Usage

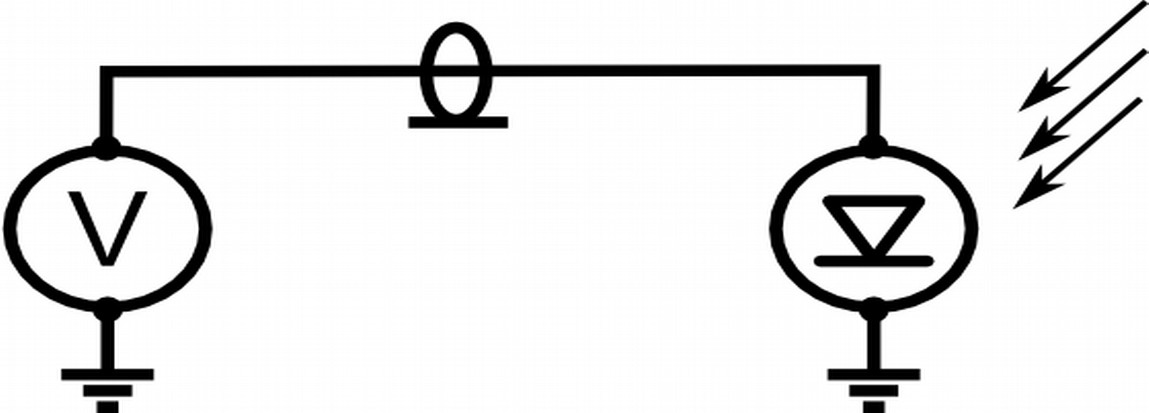

To use the detector connect SMA connector of the detector it to oscilloscope, voltmeter, or
any other voltage-sensitive gauge; use 50 Ohm coaxial cable for the best performance.
Direct sub-THz radiation to the central sensitive part of the detector.
Sensitivity of the detector depends on frequency and have NOT been calibrated! Without
prior calibration the detector is not suitable for absolute measurements of EM radiation.

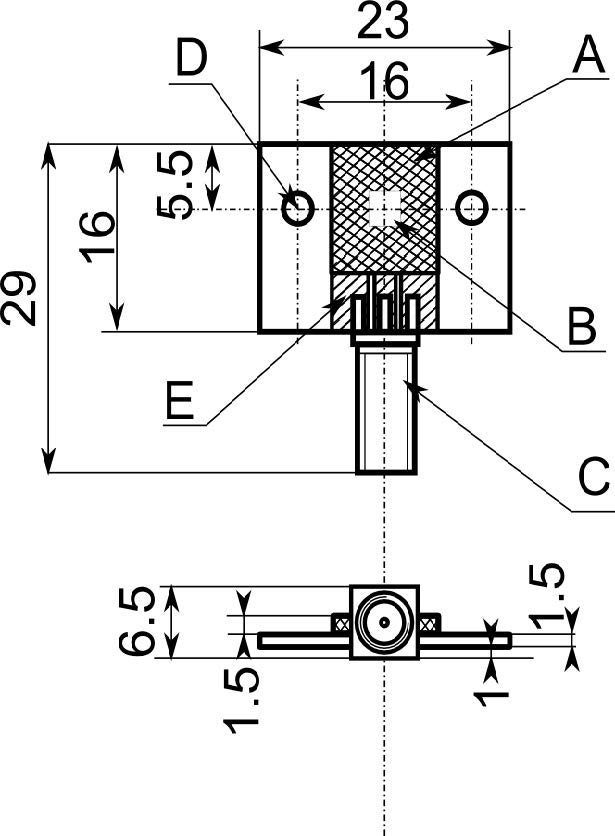

Drawings
