Compact & low noise single longitudinal mode CW DPSS lasers

04-01  Series

Compact & low noise single longitudinal mode CW DPSS lasers

04-01  Series

Compact & low noise single longitudinal mode CW DPSS lasers

  • 457-1064 nm, CW power up to 400 mW
  • Perfect TEM00 beam
  • Ultra-robust, hermetically sealed packages
  • Low noise, <0.25% rms

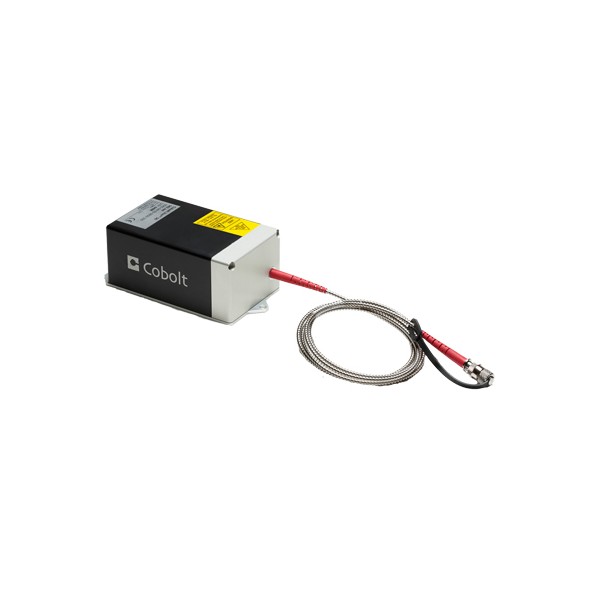

  • True fiber pigtail option
  • Optional integrated isolator
  • Optional integrated modulation up to 3MHz
  • 24 months warranty

Specifications

Product Wavelength Power Fiber pigtailed option Modulated option
Cobolt Twist™ 457 nm ≤ 50 mW - -
Cobolt Blues™ 473 nm ≤ 50 mW ≤ 35 mW ≤ 40 mW
Cobolt Calypso™ 491 nm ≤ 100 mW ≤ 100 mW ≤ 80 mW
Cobolt Fandango™ 515 nm ≤ 150 mW ≤ 100 mW ≤ 120 mW
Cobolt Samba™ 532 nm ≤ 400 mW ≤ 150 mW ≤ 240 mW
Cobolt Jive™ 561 nm ≤ 200 mW ≤ 100 mW ≤ 120 mW
Cobolt Mambo™ 594 nm ≤ 100 mW ≤ 75 mW ≤ 80 mW
Cobolt Flamenco™ 660 nm ≤ 100 mW - -
Cobolt Rumba™ 1064 nm ≤ 400 mW - -
