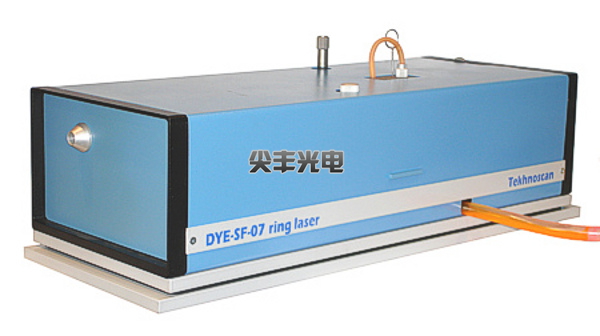

Single frequency DYESF077 (07) dye laser
Single frequency DYESF077 (07) dye laser
Single frequency DYESF077 (07) dye laser

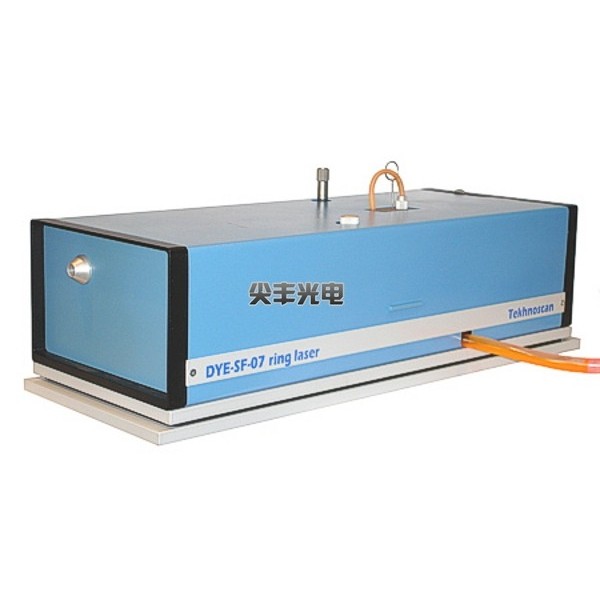

Optromix CW Single Frequency 570-700nm dye laser DYE-SF-077 has an ultra narrow linewidth (<100 kHz). Our DYE-SF-077 has outstanding generation parameters stability because its resonator plane is horizontally orientated, which allows compressed cavity elements to be lined up on a rigid and massive vibrationisolated base. The regular laser spectral range which is 570-700nm can be extended to 285-350nm using a frequency doubler. DYE-SF-077 delivered with dye circulation system and control unit.
Optromix specializes in producing supreme quality lasers, we are always ready to configure
your laser for your specific needs.
Key features
● Tunable wavelength range 570 700nm;
● Narrow linewidth (<100 kHz);
● High output power ( up to 2 W);
● Precision adjustment;
● Absolute frequency stabilization;
Applications:
● Ultrahigh resolution spectroscopy;
● Atomic cooling and trapping;
● Multiphoton deeptissue imaging;
● Nanostructure fabrication;
● Atomic lithography;
● Gas analysis;
● Trace substance detection;
● High speed wafer inspection.
DYESF077/ DYESF07 series specifications
Model |
DYEsSF077 |
DYESF07 |
Tunable wavelength range |
570 620, 620 700 nm, |
|
FWHM |
< 100 kHz |
< 150 kHz |
Max. output power |
1.5 W (10 W pump) |
2W |
Frequency drift |
< 30 MHz/hour |
|
Smooth scanning |
> 6 GHz |
|
Spatial mode |
TEM00 |
|
Polarization |
horizontal |
|
Control interface |
Control unit, RS232 |
|
Operating voltage |
220 240 Volt, 5060 Hz, Single Phase |
|
Operation temperature |
10 to 40 0C |
|
Storage temperature |
0 to +50 0C |
|
MTBF |
> 5.000 Hrs |
|
Operation Humidity |
10 70% |
|
Cooling |
Forced air |
|

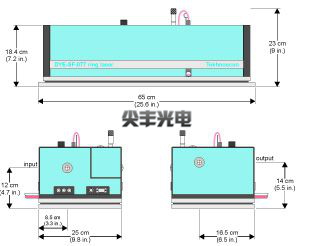

Dimensions (WxHxL) |
250 x 230 x 650 mm, 320 x 92 x 240 mm, 280x280x350 mm |
|
Weight |
≤ 12 kg |
