Q8iv

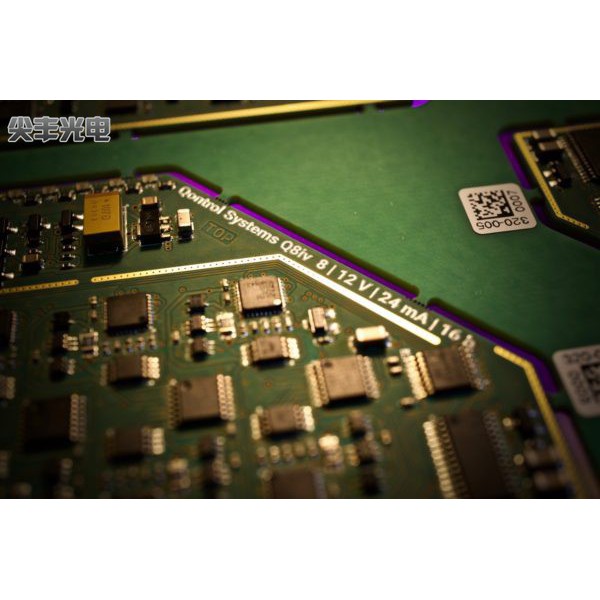

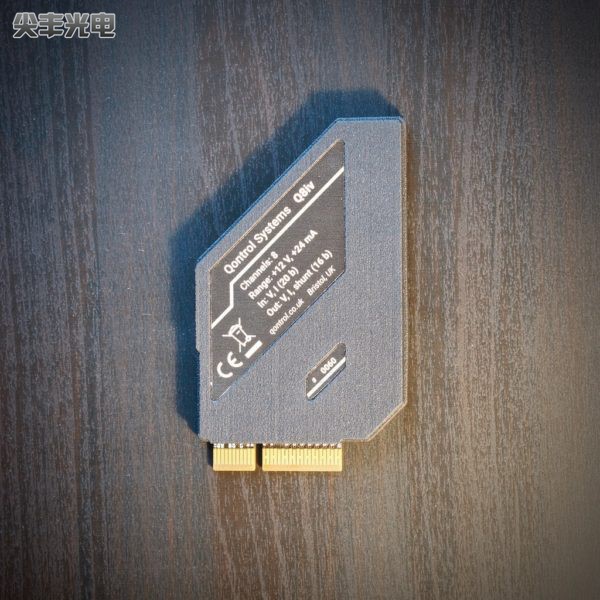

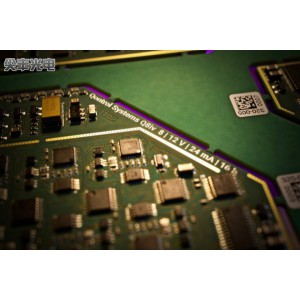

Q8iv driver module
Description

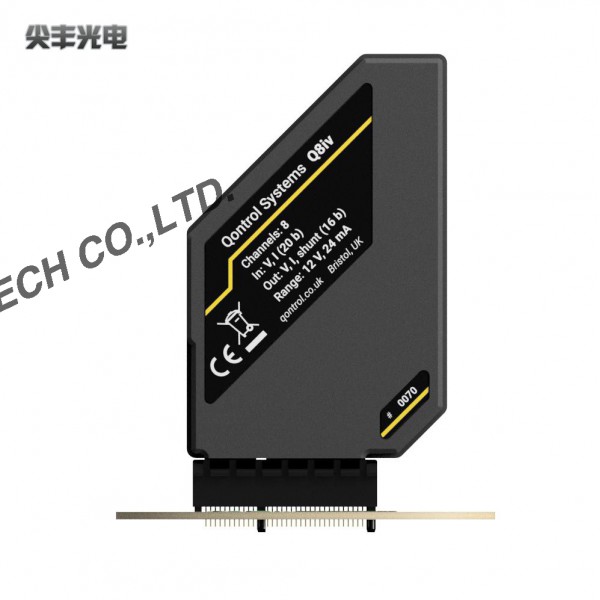

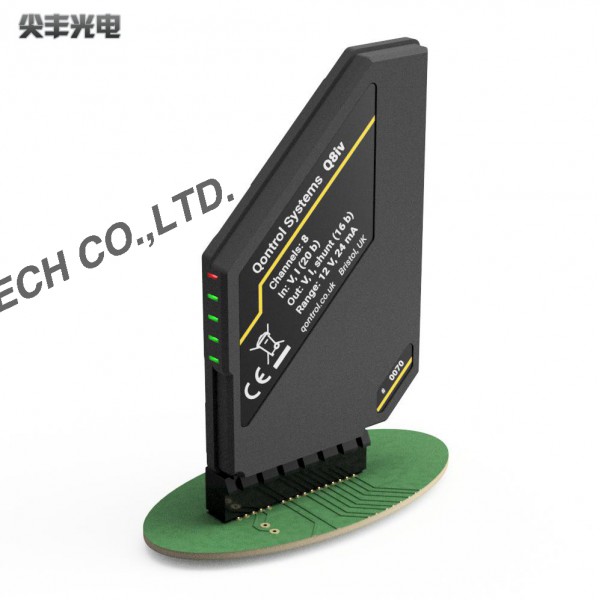

This driver module, designed for silicon photonics, contains 8 ultra-precise fully programmable channels. It uses a new card-edge connector system which is easier to use and more robust than its predecessor. Adapters are available. Next-generation fully shielded backplane, cable, and interposer infrastructure to fit the new connectors are now available. Initial quantities are limited.
Features
n 8 software-defined input/output channels
n Channels configurable as voltage output, current output, ground, voltage or current sense
n Hardware voltage and current control (12 V, 24 mA)
n 16-bit output precision (±180 µV, ±370 nA)
n 18-bit input accuracy

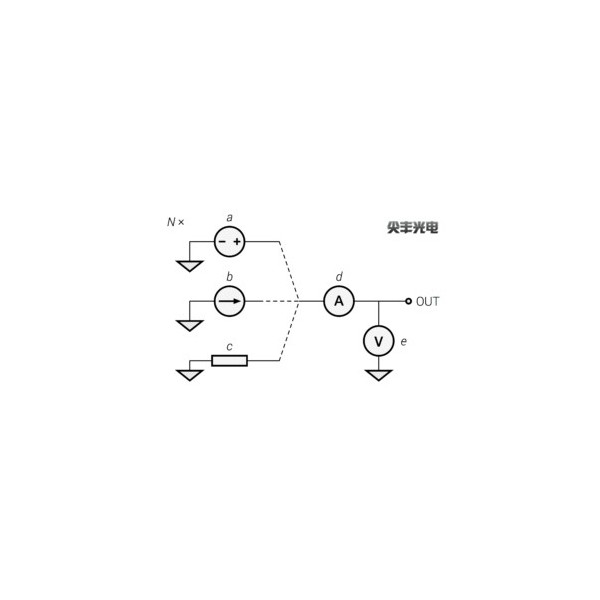

Output circuit diagram
Referring to the diagram, nominal performance values are as follows. Values with ‘±’ are digitisation step sizes (i.e. resolution) and also target accuracy.
n a = 0..12 V ± 180 µV @ +15 mA max
n b = 0..24 mA ± 370 nA @ 15 V max
n c = 1.6 Ω max
n d = –24..+24 mA ± 740 nA
n e = 0..12 V ± 50 µV
Primary control method |
current, voltage |
Current measurement precision |
740 nA |
Maximum output current (per channel) |
24 mA |
Maximum output voltage |
12 V |
Minimum input voltage |
12 V |
Maximum input voltage |
30 V |
No. of outputs |
8 |
Electrical protection |
electrostatic discharge, programmable over-current, programmable over-voltage, reverse-polarity, short-circuit |
Current control resolution |
370 nA |
Voltage control resolution |
180 µV |
Voltage measurement precision |
50 µV |
