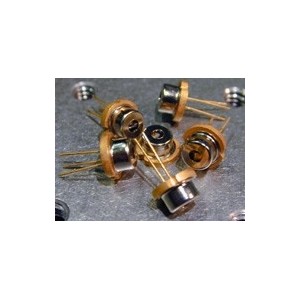

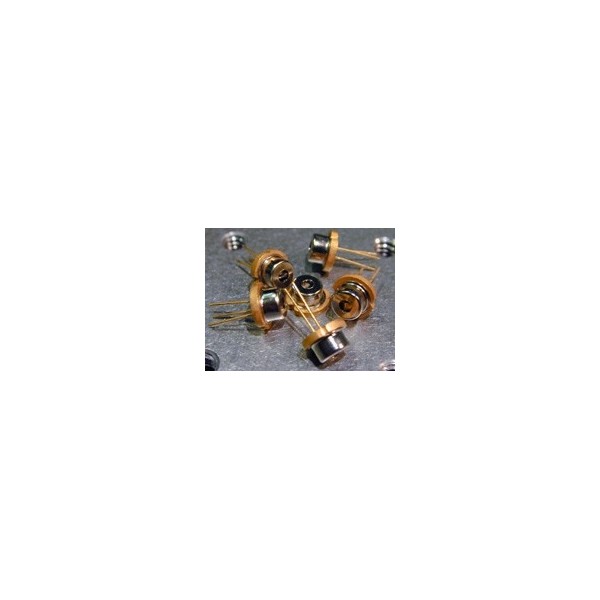

Multimode Laser Diodes
- Fabry Perot laser cavity
- Multi-Transverse modes
- InGaAsP or AlGaAs MQW
- Mesa-Buried Structure
- Low Capacitance
- 100x1.5 um Emitting Area
- Built-in monitor photodiode
Click on part numbers below for detailed specifications
|
Peak |
Part |
Typical |
Laser Type |
Package |
Spectral Width (nm) |
|
Wavelength |
Number |
Power |
|||
|
(nm) |
|
|
|||
|
805-811 |
QLD-808-500M |
500mW |
FP |
9mm TO |
2 |
|
840-860 |
QLD-850-500M |
500mW |
FP |
9mm TO |
2 |
|
1030-1125 |
QLD-1064-12M-C |
12W |
MM laser diode |
C-mount |
4 |
|
1030-1125 |
QLD-1064-6M-C |
6W |
MM laser diode |
C-mount |
4 |
|
1030-1125 |
QLD-1064-8M-C |
8W |
MM laser diode |
C-mount |
4 |
