UV Laser Diodes: 375 nm Center Wavelength

UV Laser Diodes: 375 nm Center Wavelength

UV Laser Diodes: 375 nm Center Wavelength



Features



  • Output Power of 70 mW
  • 375 nm Center Wavelength
  • Ø5.6 mm TO Can Package
  • Compatible with Thorlabs' Laser Diode and TEC Controllers
  • SM05-Threaded Adapter Included



This web page contains Thorlabs' UV laser diode with a center wavelength at 375 nm. The table below lists basic specifications. The blue Info button next to the part number within the table opens a pop-up window, which contains in-depth information regarding the diode.



We have categorized the pin configuration of TO-packaged diodes into standard A, B, C, D, E, F, G and H pin codes (see image below). This pin code allows the user to easily determine compatible mounts. TO can diodes are widely supported by our product line.

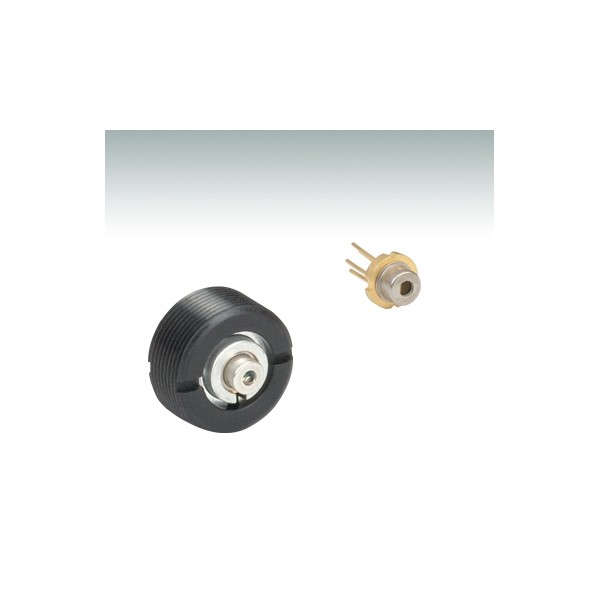

The diode may be used with the included SM05-threaded passive mounting adapter, allowing the diode to be mounted directly in SM05 lens tubes and kinematic mounts. Please note that a TEC-cooled mount is necessary for high-power applications.



While the center wavelength is listed for the diode, this is only a typical number. The center wavelength of a particular diode varies from production run to production run, thus the diode you receive may not operate at the typical center wavelength. Diodes can be temperature tuned, which will alter the lasing wavelength.



Please see our Laser Diode Tutorial for more information on laser diodes in general.



Laser diodes are sensitive to electrostatic discharge (ESD). Please take the proper precautions when handling the device; see ESD protection accessories. Our L375P70MLD laser diode contains a Zener diode that can help prevent electrostatic damage. Fabry-Perot lasers are also sensitive to optical feedback, which can cause significant fluctuations in the output power of the laser diode depending on the application. Members of our technical support staff are available to help you select a laser diode and to discuss possible operation issues.
