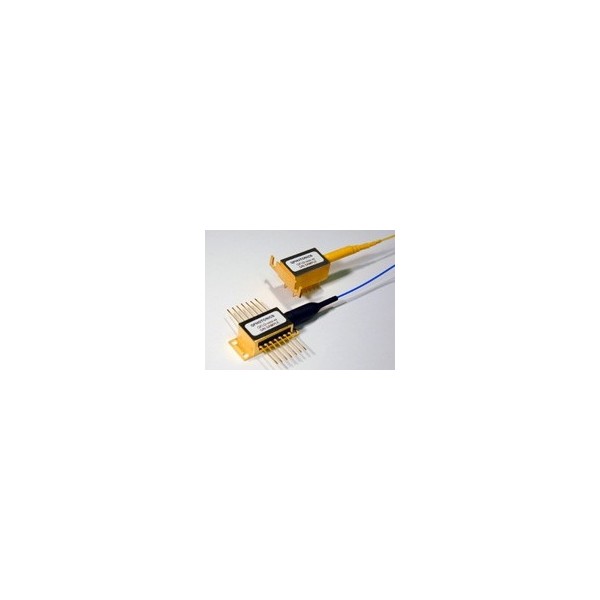

Single frequency DFB laser diodes
- Wavelength-stabilized laser diodes with either
- Distributed Feed Back (DFB),
- Distributed Bragg Reflector (DBR), or
- Discrete Mode (DM) design
- Single frequency output, tunable by temperature or current
- CW or pulsed operation
- 14-pin butterfly or 14-pin DIL package with built-in thermistor, thermoelectric cooler, and photodiode
- Single-mode fiber pigtail or polarization-maintaining (PM) fiber pigtail
- Optional FC/PC or FC/APC connector
Click on part numbers below for detailed specifications:
|
Peak |
Part |
Typical |
Laser Type |
Package |
Spectral Width, nm |
|
Wavelength |
Number |
Power |
|||
|
(nm) |
|
|
|||
|
758-764 |
QDMLD-760-5 |
5mW |
DM |
Butterfly |
5MHz |
|
778-784 |
QDMLD-780-10 |
10mW |
DM |
Butterfly |
2MHz |
|
1000-1100 |
QDFBLD-1060-20 |
20mW |
DFB |
Butterfly |
3MHz |
|
1028-1032 |
QDFBLD-1030-20 |
20mW |
DFB |
Butterfly |
3MHz |
|
1050-1070 |
QFTS-1060-LD |
1 |
LD |
Turnkey Source |
|
|
1062-1066 |
QDBRLD-1064-150 |
150mW |
DBR |
Butterfly |
3MHz |
|
1063-1065 |
QDFBLD-1064-20 |
20mW |
DFB |
Butterfly |
3MHz |
|
1078-1082 |
QDFBLD-1080-20 |
20mW |
DFB |
Butterfly |
3MHz |
|
1288-1292 |
QDFBLD-1290-2 |
2mW |
DFB |
Co-axial |
0.01 |
|
1290-1320 |
QDFBLD-1300-20 |
20mW |
DFB |
Butterfly |
0.02 |
|
1300-1320 |
QDFBLD-1300-10 |
10mW |
DFB |
Butterfly |
0.02 |
|
1300-1320 |
QDFBLD-1310-20DIL |
20mW |
DFB |
14pins DIL |
0.01 |
|
1300-1320 |
QDFBLD-1310-2 |
2mW |
DFB |
Co-axial |
0.01 |
|
1300-1320 |
QDFBLD-1310-5AX |
4mW |
DFB |
Co-axial |
0.01 |
|
1300-1315 |
QDFBLD-1300-5 |
5mW |
DFB |
14pins DIL |
0.01 |
|
1376-1400 |
QDMLD-1392-10 |
10mW |
DM |
Butterfly |
2 MHz |
|
1385-1395 |
QDFBLD-1390-10 |
10mW |
DFB |
Butterfly |
10MHz |
|
1470-1510 |
QDFBLD-1490-5 |
5mW |
DFB |
Co-axial |
0.01 |
|
1480-1500 |
QDFBLD-1490-10DIL |
10mW |
DFB |
14pin DIL |
0.01 |
|
1480-1500 |
