Single frequency FBG laser diodes
- Single frequency laser diodes with fiber Bragg grating (FBG)
- Single longitudinal mode
- FBG located 1-2mm from LD chip
- CW or pulsed operation
- Fast turn-on time of ~0.5ns

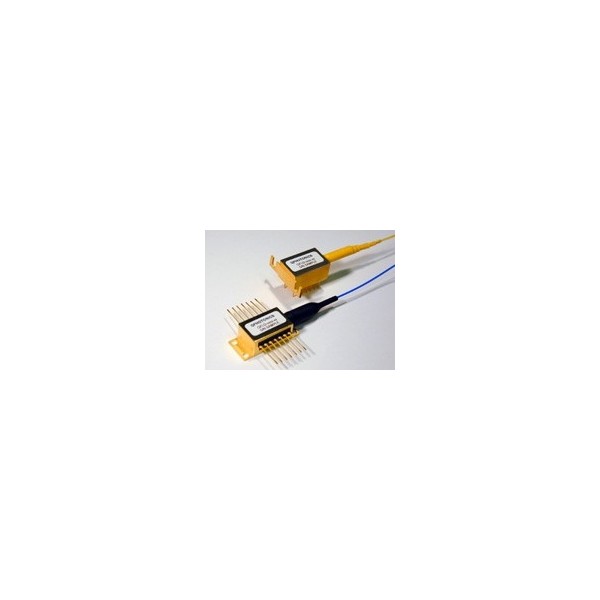

- 14-pin DIL or 14-pin butterfly packages with built-in thermistor, thermoelectric cooler, and photodiode
- Single-mode fiber pigtails or polarization-maintaining (PM) fiber pigtails
- Optional FC/PC or FC/APC connector
- 0.1nm overall tuning range
Click on part numbers below for detailed specifications
|
Peak |
Part |
Typical |
Laser Type |
Package |
Spectral Width |
|
Wavelength |
Number |
Power |
|||
|
(nm) |
|
|
|||
|
630-645 |
QFBGLD-635-1 |
0.5mW |
FBG |
14-Pin DIL |
500 kHz |
|
630-638 |
QFBGLD-633-30 |
30mW |
FBG |
Butterfly |
500 kHz |
|
650-670 |
QFBGLD-660-1 |
0.5mW |
FBG |
14-Pin DIL |
500 kHz |
|
750-770 |
QFBGLD-760-5 |
5mW |
FBG |
14-Pin DIL |
500 kHz |
|
765-785 |
QFBGLD-775-5 |
5mW |
FBG |
14pin DIL |
500 kHz |
|
785-795 |
QFBGLD-790-5 |
5mW |
FBG |
14-Pin DIL |
500 kHz |
|
800-815 |
QFBGLD-808-5 |
5mW |
FBG |
14-Pin DIL |
500 kHz |
|
820-840 |
QFBGLD-830-5 |
5mW |
FBG |
14-Pin DIL |
500 kHz |
|
840-860 |
QFBGLD-850-5 |
5mW |
FBG |
14-Pin DIL |
500 kHz |
|
885-905 |
QFBGLD-895-2 |
2mW |
FBG |
14-Pin DIL |
500 kHz |
|
905-925 |
QFBGLD-915-5 |
5mW |
FBG |
14-Pin DIL |
500 kHz |
|
940-960 |
QFBGLD-950-5 |
5mW |
FBG |
14-Pin DIL |
500 kHz |
|
965-985 |
QFBGLD-980-5 |
5mW |
FBG |
14-Pin DIL |
500 kHz |
|
1020-1040 |
QFBGLD-1030-5 |
5mW |
FBG |
14-Pin DIL |
500 kHz |
|
1048-1058 |
QFBGLD-1053-5 |
5mW |
FBG |
14-Pin DIL |
500 kHz |
|
1050-1070 |
QFTS-1060-LD |
1 |
LD |
Turnkey Source |
|
|
1055-1075 |
QFBGLD-1060-10 |
10mW |
FBG |
14-Pin DIL |
500 kHz |
|
1055-1075 |
QFBGLD-1060-10BTF |
10mW |
FBG |
Butterfly |
500 kHz |
|
1055-1075 |
QFBGLD-1060-20 |
20mW |
FBG |
Butterfly |
500 kHz |
|
1055-1075 |
QFBGLD-1060-20PM |
20mW |
