Fiber Optics |
The fibers from Schäfter+Kirchhoff are singlemode and polarization-maintaining. The fiber facette can have either a 0°-polish (PC) or an 8°-polish (APC) to prevent backreflection into the radiation source. The connector types available are FC, DIN AVIO, ST, E2000, and F-SMA. The 60SMS-... Laser Beam Couplers provide efficient coupling to the fibers, while collimation is performed using the 60FC-... Fiber Collimators for both PC and APC fiber types. |
|
Polarization-maintaining fiber cables PMC-...
- Wavelengths 360–1550 nm
- FC-APC and FC-PC connectors (ST, DIN AVIO, F-SMA and E2000 type connectors available on request)
- Amagnetic titan connectors available for FC-APC or FC-PC connectors
- PMC-E-...: Polarization-maintaining singlemode fiber cable with end caps for reduced power density at the fiber end face (one or both ends)
|
|
Singlemode fiber cables SMC-…
- Wavelength 360–1550 nm
- FC-APC or FC-PC fiber connector (other connector types available on request)
- Amagnetic titan connectors available for FC-APC or FC-PC connectors
- SMC-E-...: Singlemode fiber cable with end caps for reduced power density at the fiber end face (one or both ends)
|
|
Photonic crystal fiber PCF-...
- Polarization-maintaining and singlemode fibers
- Relatively large mode field diameter and wide spectral range
- FC-APC, FC-PC, SMA-905 High Power Connector (NKT Photonics) (0°, 5° and 8°-polish
- Laser beam coupler and fiber collimators (also for kineMATIX) available for all connector types
|
|
Multimode fiber cables MMC-…
- High OH-/ Low OH- for UV and VIS radiation or VIS and NIR radiation, respectively
- FC-APC or FC-PC fiber connector (other connector types available on request)
- Amagnetic titan connectors available for FC-APC or FC-PC connectors
|
|

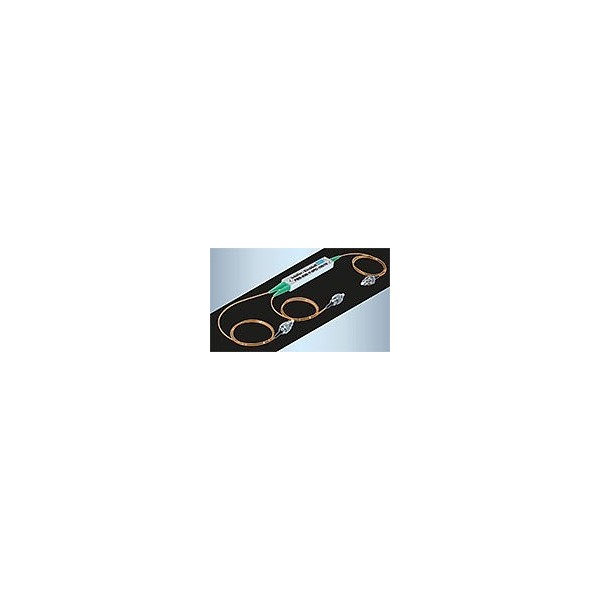

Fiber optical beam splitter FBS-...
- Wavelength 460–1550 nm
- Standard splitting ratio 50:50
- FC-APC and FC-PC Connectors
|
|
Vacuum Feed-Throughs V-…
- Polarization-maintaining, singlemode or multimode fiber cables
- Two different flange types: small flange KF16 and screw-type flange M12×1 mm
- FC-APC and FC-PC connectors (ST, DIN AVIO, F-SMA and E2000 type connectors available on request)
- V-E-...: Vacuum feed-through with connectors with end caps with singlemode and PM-fibers for a reduced power density at the fiber end face (one or both ends)
|
|
Casing Feed-Throughs CFT-… |
|
Fiber delay lines CAS-...
- Fiber cables, spooled in a compact cassette
- Singlemode or polarization-maintaining
- CAS-E-…: Fiber Delay Lines with connectors with end caps with singlemode and PM-fibers for a reduced power density at the fiber end face (one or both ends)
|
|
FC adapters without optics and FC mating sleeves For connecting fiber cables Variety of designs |
