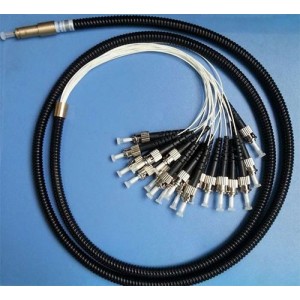

Fiber Optic Bundles

Features

§  High Power Transfer Efficiency

§  Wavelength Insensitivity

§  High Power Handling

§  Custom Configurations Available

Applications

§  High Power All-Fiber Lasers

§  High Power Fiber Amplifiers

§  Medical

§  Defense

Specifications

Parameter

Unit

Fiber Number

2, 3, 4, 7, 19, 37, 61

Transfer Efficiency

Typ

%

98

Operating Power

Max

W

5

Operating Temperature

°C

-40 to +85

Storage Temperature

°C

-50 to +85

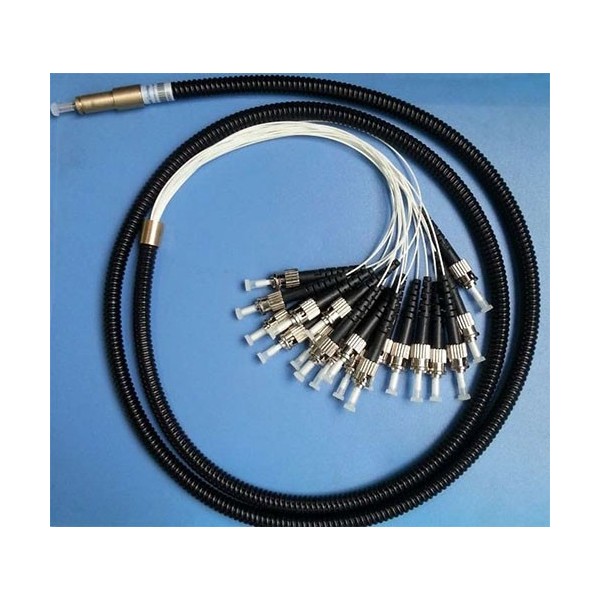

Physical View

Diagram

F

O

B

0

0

0

0

0

Fiber Number

Fiber Type

Fiber Length

Breakout Length

Connector

1=2-Fiber

2=3-Fiber

3=4-Fiber

4=7-Fiber

5=19-Fiber

6=37-Fiber

7=61-Fiber

S=Specify

S=Specify

1=105/125μm (NA=0.22)

2=62.5/125μm

3=50/125μm

4=Plastic fiber

5=SMF28e or G.625 series fiber

S=Specify

1=1.0m

2=1.5m

S=Specify

1=15cm

2=25cm

3=35cm

S=Specify

0=None

1=FC/PC

2=ST

3=ST/PC

S=Specify

Note:
1. Central Wavelength can be customized for different applications.
2. All specifications are subject to change without notice.
