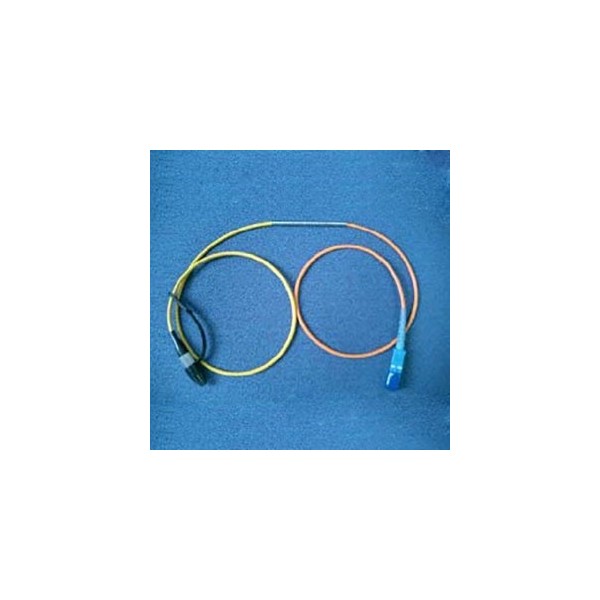

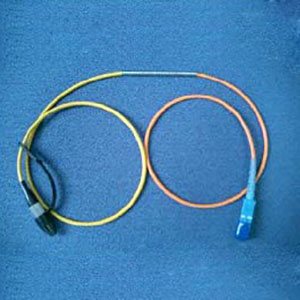

SM-MM Broadband Converter
SM-MM Broadband Converter
SM-MM Broadband Converter
Features |
Centralized Cladding Splicing Permanent Splice Low Splicing Loss Automatically-Spliced |
Applications |
Easy to Use Install Any Connector Avoid Differential Mode Delay (DMD) Fits Existing Cabling Scheme |
Specifications |
|||||
Parameter |
Unit |
Premium |
A Grade |
||
Bandwidth |
nm |
All Wavelength |
|||
Insertion Loss |
Max |
dB |
0.5 |
1.0 |
|
Operating Power |
Max |
W |
5 |
Typical Spectrum |
|
订购信息 |
||||||||||||
S |
M |
M |
M |
0 |
0 |
|||||||
Pigtail |
Package |
Fiber Length |
Input Fiber Type |
Output Fiber Type |
Input Connector |
Output Connector |
||||||
S = 250μm bare fiber M=900μm loose tube L=3mm cable R=2mm cable |
A=S11 D=M1 |
0=0.5m 1=0.75m 2=1.0m 3=1.5m 4=2.0m S=Specify |
1=SMF-28e |
2=50/125μm 3=62.5/125μm |
0=None 1=FC/PC 2=FC/SPC 3=FC/APC 4=SC/SPC 5=SC/APC 6=ST 7=FC/UPC 8=SC/UPC 9=MU A=LC B=SC/PC C=LC/UPC D=LC/APC |
0=None 1=FC/PC 2=FC/SPC 3=FC/APC 4=SC/SPC 5=SC/APC 6=ST 7=FC/UPC 8=SC/UPC 9=MU A=LC B=SC/PC C=LC/UPC D=LC/APC |
||||||
Note:1. Central Wavelength can be customized for different applications 2. All specifications are subject to change without notice. |
