1.General:

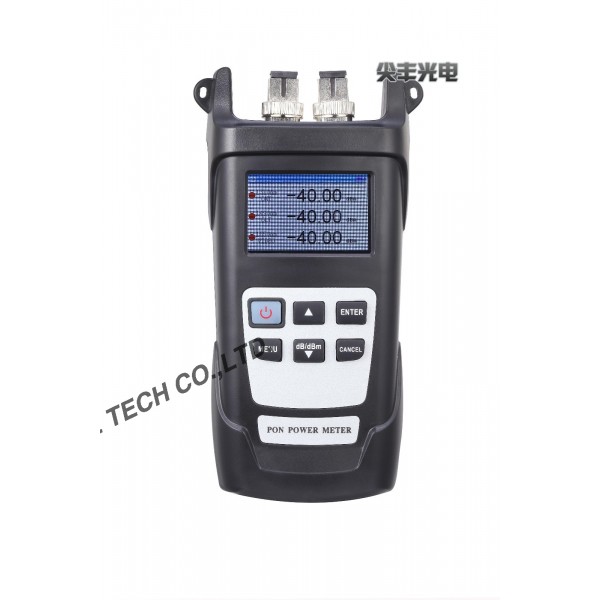

JF-H660i PON optical power meter is testing instrument targeted at FTTX application and maintenance. It can simultaneously test the signal of the voice, data and video. It is an ideal choice for FTTX net project, construction and maintenance.
2.Accessories
1. JF-H660i PON optical power meter ------------------------------------------1pcs
2. FC/SC/ST adaptor interface------------------------------------------------------1pcs
3. Operation instruction------------------------------------------------------------1pcs
4. 7.4v lithium battery----------------------------------------------------------------1pcs
5. Power supply adaptor--------------------------------------------------------------1pcs
6. USB cable-----------------------------------------------------------------------------1pcs
7. CD--------------------------------------------------------------------------------------1pcs
3.Parameter
Type |
JF-H660i |
||
Calibrated wavelength |
1310upstream |
1490downstream |
1550down stream |
bandwidth |
1260~1360 |
1470~1505 |
1535~1570 |
Measurement range |
-40~+10 |
-40~+10 |
-40~+20 |
Isolation 1310nm(dB) |
- |
>40 |
>40 |
Isolation 1490nm(dB) |
>40 |
- |
>40 |
Isolation 1550nm(dB) |
>40 |
>40 |
- |
Measurement accuracy |
|||
Uncertainty(dB) |
±0.5 |
||
PDL(dB) |
<±0.25 |
||
Linearity(dB) |
±0.1 |
||
Insertion loss(dB) |
<1.5 |
||
General index |
|||
Relative measurement |
0.01dB |
||
Unit |
dB dBm |
||
Input voltage |
DC 8.4V |
||
Rechargeable battery |
7.4V |
||
AC adaptor |
8.4V |
||
Fiber type |
SM |
||
Operation temperature(℃) |
-10~+60 |
||
Storage temperature (℃) |
-25~+70 |
||
Dimension |
198*99.4*49.8 |
