Polarization Maintaining Fused RG Combiner

Polarization Maintaining Fused RG Combiner



Polarization Maintaining Fused RG Combiner

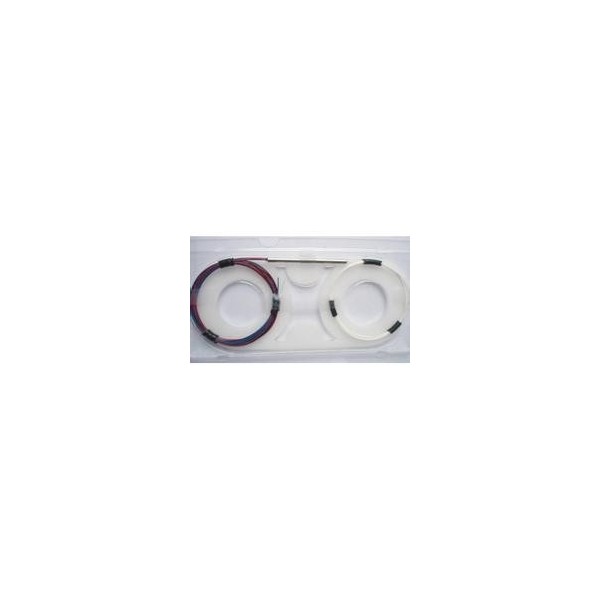

       The Polarization Maintaining Fused RG Combiner is manufactured by using advanced technology and polarization maintaining fiber to enable the red and green light to be combined. They offer low excess loss, small size, high extinction ratio, high return loss, and excellent environmental stability.

Parameter Unit Value
Center Wavelength (λc) nm 635(R)/532(G)
Typ. Insertion Loss, λc dB 1.0
Max. Insertion Loss, λc dB 1.5
Min. Extinction Ratio dB 18 (Grade P), 15 (Grade A)
Thermal Stability dB/℃ ≤ 0.005 over -5 to +70 °C
Min. Return Loss  dB 50
Min. Directivity dB 50
Max. Optical Power mW 300
Fiber Type   Nufern PM 460-HP fiber
Operating Temperature ℃ -5 to +70
Storage Temperature ℃ -40 to +85
*IL is 1.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
*The Optical Power is 50 mW only for connector added.

Package Dimensions

Ordering Information


PMWDM-①-②②-③-④-⑤-⑥
①: Configuration ②②: Wavelength ④: Connector Type
1 - 1 × 2 RG - 635 & 532 nm 1 - FC/UPC
    2 - FC/APC
    3 - SC/UPC

⑤: Fiber Jacket ⑥: Fiber Length
B - 250 μm bare fiber H - 0.5 m
L - 900 μm loose tube Q - 0.75 m
  S - Specify
