Polarization Maintaining Fiber Patchcord

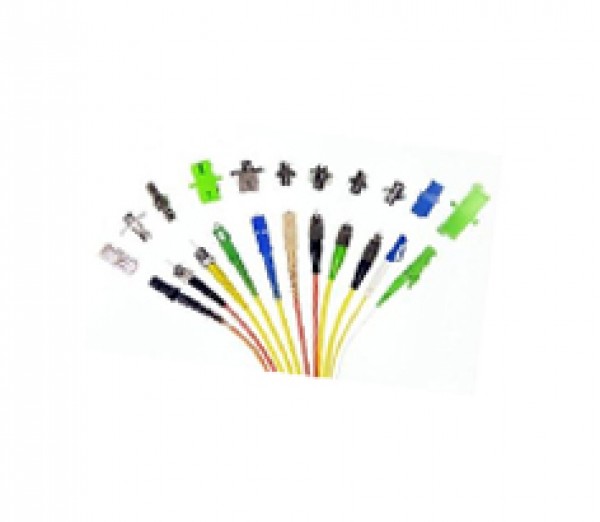

 Polarization Maintaining Fiber Patchcord

 Polarization Maintaining Fiber Patchcord



Features

　 Polarization Maintaining Fiber Patchcord

Low Insertion Loss High Extinction Ratio

High stability and reliability

Application

Fiber Laser Fiber Amplifier

Testing Instrument Optic lab use



Specifications

Parameter

Value

Connector Type

FC/UPC, SC/UPC,LC/UPC ,FC/APC, SC/APC, LC/APC

Wavelength (nm)

1310,1480, 1550

980, 1064,

Insertion Loss (dB)

≤0.3

≤0.5



Return loss (dB)

UPC Type

≥50

APC type

≥60

Extinction Ratio (dB)

≥23

≥23

Fiber Type

PM1310,PM1550

PM980

Key Orientation

Slow Axis

Axis Alignment (deg)

±3

Operating temperature (℃)

-5~+70

Storage temperature (℃)

-40 ~ +80

Package Dimensions

 Polarization Maintaining Fiber Patchcord

Ordering Information

PMJP

Connector End1

Connector End 2

Wavelength

Pigtail Type

Fiber Type

Fiber Length

　

NE=None

FA=FC/APC

FC=FC/UPC

SA=SC/APC

SC=SC/UPC

LC=LC/UPC

LA=LC/APC

X=Other

NE=None

FA=FC/APC

FC=FC/UPC

SA=SC/APC

SC=SC/UPC

LC=LC/UPC

LA=LC/APC

X=Other

980

1064

1310

1550

250=250um bare fiber

900=900um loose tube

2000=2mm loose tube

3000=3mm loose tube

PM850

PM980

PM1310

PM1550

1=1m

2=2m

X=Other
