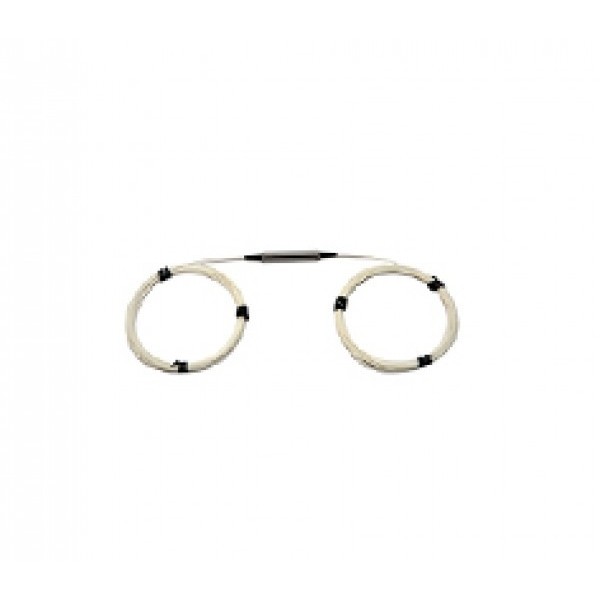

Polarization Maintaining Isolator (1310,1480,1550nm)
Polarization Maintaining Isolator
Polarization Maintaining Isolator (1310,1480,1550nm)
Features |
|
Low Insertion Loss Low Extinction Ratio & High Isolation High stability and reliability |
|
Application |
|
EDFA Fiber Optical Instrument Fiber Sensor |
Type Parameter |
Single Grade |
Dual Grade |
|||
P |
A |
P |
A |
||
Operating Wavelength (nm) |
1310,1480, 1550 |
||||
Bandwidth (nm) |
±20 |
||||
Peak isolation (dB) |
42 |
40 |
58 |
55 |
|
Isolation (at 23℃) (dB) |
≥28 |
≥26 |
≥48 |
≥45 |
|
Typ. Insertion Loss (at 23℃) |
0.4 |
0.5 |
0.5 |
0.6 |
|
Insertion Loss (at-5 ~ +70 ℃) |
≤0.55 |
≤0.65 |
≤0.65 |
≤0.80 |
|
Extinction Ratio (dB) |
Type B (Both of axis working) |
≥20 |
≥18 |
≥20 |
≥18 |
Type F (Fast axis blocked) |
≥22 |
≥20 |
≥22 |
≥20 |
|
Return loss (Input/Output) (dB) |
≥55 |
||||
Power handling (mW) |
≤300 |
||||
Fiber Type |
panda Fiber. |
||||
Operating temperature (℃) |
-5~+70 |
||||
Storage temperature (℃) |
-40 ~ +80 |
||||
Dimensions (mm) |
φ5.5×L35 |
*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis
Package Dimensions
Ordering Information:
PMIS |
Type |
Grade |
Wavelength |
Axis Alignment |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
S= Single stage D = Dual Stage |
P A |
1310 1480 1550 |
F=Fast Axis Blocked B=Both Axis Working |
250=250um bare fiber 900=900um loose tube |
5=Panda fiber |
0.8= 0.8m |
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC XX=Other |
