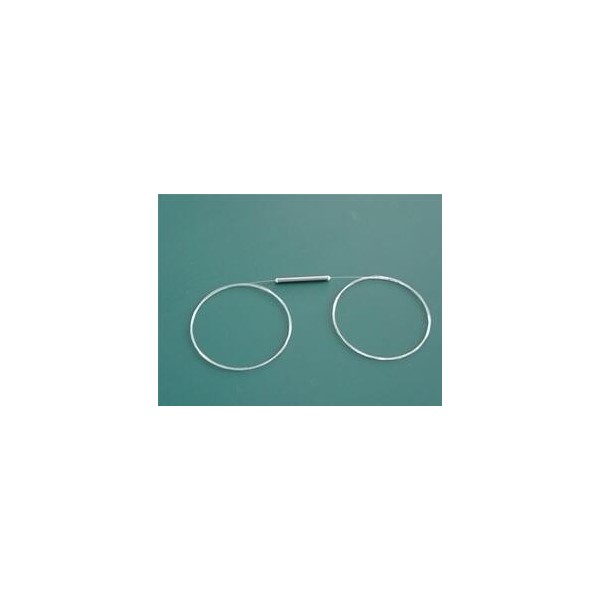

PM Filter WDM (980/1064, 1030/1064, 980/1550, 1550/1064,1480/1550nm)

PM Filter WDM (980/1064, 1030/1064, 980/1550, 1550/1064,1480/1550nm)

Features



Low Insertion Loss

High Extinction Ratio & High Isolation

High stability and reliability

Application

Fiber Laser

Fiber Amplifier

Testing equipment

Specifications

Type

Parameter



980/1064



1030/1064



980/1550



1550/1064



1480/1550



Pass wavelength (nm)

960~990

or 1020~1080



1064+/-2.5



1520~1580



1500~1600



1520~1580



Reflection wavelength (nm)

1020~1080 or 960~990



1030+/-10



960~990



1040~1064



1480+/-10

Pass Insertion Loss (dB)

≤0.8

≤0.8

≤0.7

≤0.8

≤0.8

Reflection Insertion Loss

(dB)



≤0.6



≤0.6



≤0.5



≤0.6



≤0.6

Pass channel Isolation (dB)

≥25

≥25

≥25

≥25

≥25

Reflection Isolation (dB)

≥13

≥13

≥13

≥13

≥13

Channel Flatness (dB)

≤0.3

Extinction Ratio (dB)

≥20

Return Loss (dB)

≥50

Insertion      loss       thermal

stability    (dB/℃)



≤0.005

Power handling (CW,total) (mW)



≤300



Fiber

Type

Common& Pass port



PM 980



PM 980



PM 1550



PM 1550



PM1550



Reflection Port



PM 980



PM 980

HI1060 or PM

980

HI1060 or

PM 980

SMF-28e or PM1550

Operating temperature (℃)

0 ~ +65

Storage temperature (℃)

-40 ~ +85

Dimensions (mm)

φ5.5×L35

For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis

Package Dimensions



Ordering Information



PMFWDM



Port Type



Wavelength



Pigtail Type

Fiber

Type



Length



Connector



1x2

980T/1064R

980R/1064T

1550T/980R

1550T/1064R

1064T/1030R

1550T/1480R

250=250um bare fiber

900=900um loose tube

3000=3mm loose tube

5=Panda fiber

0.8=0.8m

1=1m

NE=None FA=FC/APC FC=FC/UPC

SA=SC/APC SC=SC/UPC XX=Other
