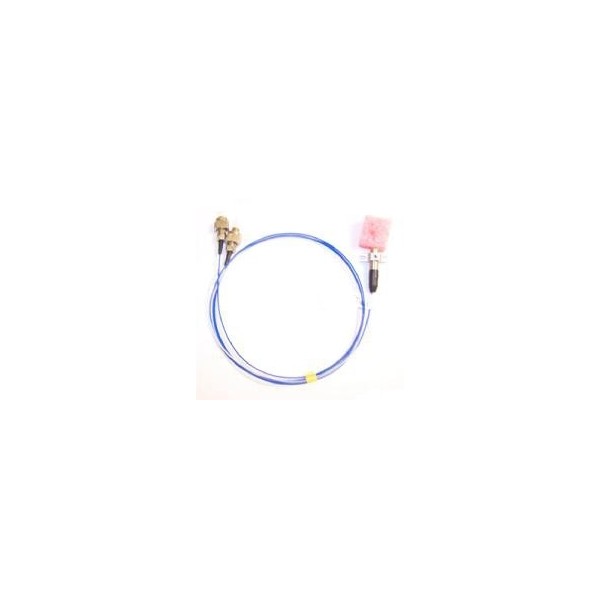

PM Tap PD Monitor

Parameter

Value

Operating wavelength(nm)

1550, 1064

Bandwidth(nm)

±40

Tap Ratio(%)

1%

5%

Responsibility(mA/W)

8

40

Insertion Loss(dB)

≤0.35

≤0.6

Extinction Ratio (dB)

≥20

Return loss(dB)

≥45

Fiber Type

Panda Fiber

Operating temperature (℃)

0 ~ +70

Storage temperature(℃)

-40 ~ +85

Power Handling (mW)

300

Dimensions(mm)

Ф5.5 × L26

PMTPM

Wavelength

Coupling

Pigtail

Fiber

length

Connector

1064

1310

1550

1%=1/99

5%=5/95

10%=10/90

S=Specify

250=250um bare fiber

900=900um loose tube

5=Panda

Fiber

0.8=0.8m

S=Specify

00=none

FC,SC,LC,MU, ST/UPC,APC
